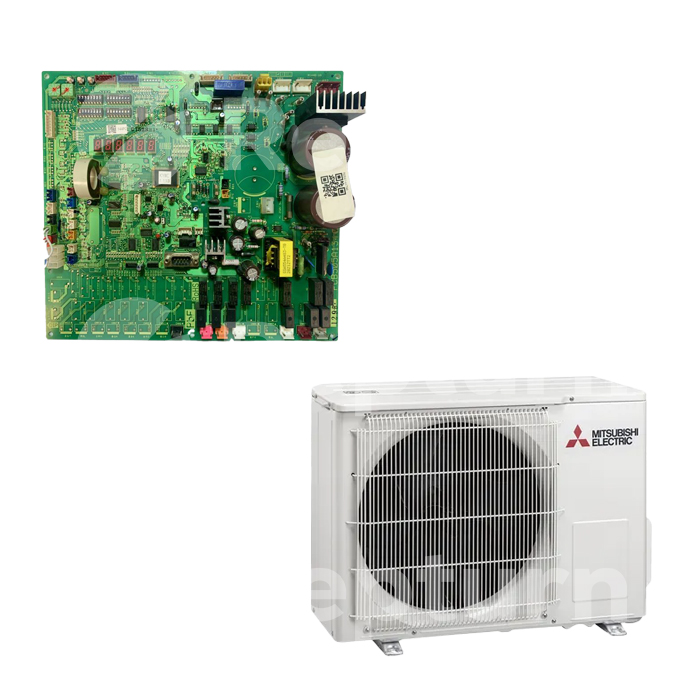

PCB505A134 electronic board for Mitsubishi outdoor unit
Mitsubishi outdoor unit circuit board
Our services for professionals :
Our offers are reserved for professionals.
Individual? Find a repairer near you
* Shipping costs for metropolitan France and Corsica. For euro zone countries outside France, cost €49 (excl. VAT) return. For countries outside the euro zone, on quotation.
Common faults and malfunctions
- Fan failure
- Error E48
Mitsubishi outdoor unit
Part description and references
Repair of PCB505A134 electronic board for Mitsubishi outdoor unit
What is the purpose of the PCB505A134 circuit board?
The PCB505A134 electronic board controls the various functions of the Mitsubishi heat pump outdoor unit. In particular, it manages the fans and compressor, and ensures that the outdoor unit operates correctly. This electronic board plays an essential role in heat pump performance and regulation. In the event of a malfunction, some elements of the outdoor unit may no longer function properly.
PCB505A134 electronic board faults
We’ve already experienced several faults on the PCB505A134 board, including fan problems and the appearance of error code E48. These malfunctions may be linked to the failure of certain electronic components on the PCB505A134 board.
PCB505A134 Mitsubishi electronic board repair
The repair begins with a diagnosis to identify the precise source of the fault on the electronic board. The faulty components are then replaced, and the board is tested to check that the outdoor unit is operating correctly.
In the event of a breakdown on a Mitsubishi heat pump equipped with a PCB505A134 electronic board, specialized work on the electronics can restore the system to operation.
How can I have it repaired? And how much does the repair cost?
Transport and delivery: You have the option of using our transport service to ship the faulty part from your company. Once your request has been validated by our team, you'll receive a shipping label to stick on the box in which you've packed your part. In this case, the cost of transporting your part is €35.5 (excl. VAT) return for mainland France and Corsica (€21 (excl. VAT) outward and €14.5 (excl. VAT) return). You can also choose to ship the part yourself, or hand-deliver it to us in Couëron (44). For countries in the euro zone, outside France, the cost is €49 (excl. VAT) return. For countries outside the euro zone, transport costs will be quoted on request.
Repair rates: For repair services, we draw up customized estimates based on the characteristics of your part and the breakdowns or problems encountered. Once the part has been received and diagnosed in our workshops, you will receive your quotation in your customer area and by email. The service will be carried out once your quotation has been validated.
Warranty: Parts repaired in our workshops are guaranteed for 1 year from the date of repair. This means that if your equipment breaks down again or has a problem within the warranty period, we will pay for transport, any new spare parts and any other services required to keep it running smoothly.
Customer service : Our customer service team is on hand to answer any technical or practical questions you may have. Our switchboard is open Monday to Friday, 8.30am to 12pm and 2pm to 5pm, on +33 9 72 10 22 50. You can also contact us by email at info@repturn.com.
Repturn is not an authorized distributor or reseller of the products presented on this website. The references, brands and logos used are the property of the companies holding the rights. Trademarks are used to identify the products we repair or recondition.
